Home > products > Intermediate Wire Drawing Machine > Antiwear Copper Wire Making Machine , SGS 50/60Hz Wire Drawing Equipment

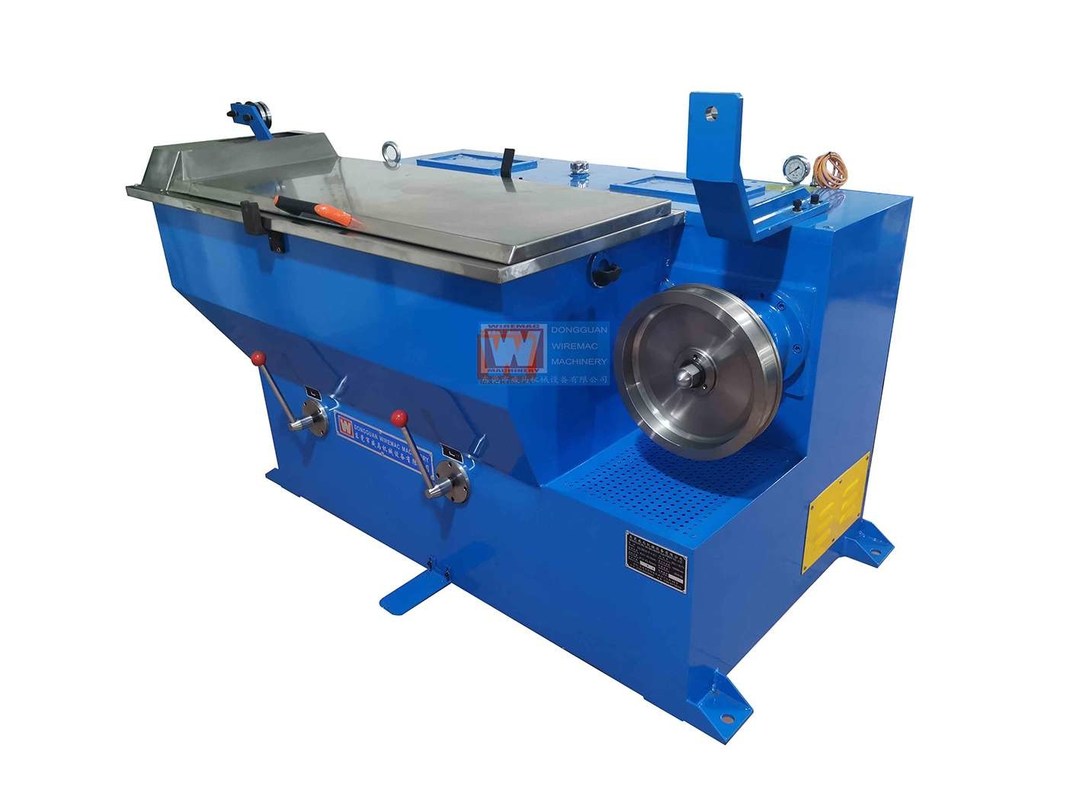

Antiwear Copper Wire Making Machine , SGS 50/60Hz Wire Drawing Equipment

Product Details

Place of Origin: China

Brand Name: Wiremac

Certification: SGS, CE, UL

Model Number: ZDL350A

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Nude Packing or Wooden Case

Delivery Time: 5 to 7 Weeks

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50 Set/Month

Get Best Price
Product Details
High Light:

Antiwear Copper Wire Making Machine

,

SGS Copper Wire Making Machine

,

60Hz Wire Drawing Equipment

Inlet Wire:
3.0 / 3.5 MM
Outlet Wire:
1.0 - 2.76 MM
Die Quantity:
9
Max Speed:
1200 M/min
Drawing Pulley:
350 MM
Die Dimension:
25 X 15
Main Power:
55 KW (AC)
Machine Dimension:
L11000 X W4200 X H5000 MM
Machine Weight:
5500 KG
Warranty:
One Year
Quality Control:
Europe, US Standard
Color:
Blue Or Optional
Inlet Wire:
3.0 / 3.5 MM
Outlet Wire:
1.0 - 2.76 MM
Die Quantity:
9
Max Speed:
1200 M/min
Drawing Pulley:
350 MM
Die Dimension:
25 X 15
Main Power:
55 KW (AC)
Machine Dimension:
L11000 X W4200 X H5000 MM
Machine Weight:
5500 KG
Warranty:
One Year
Quality Control:
Europe, US Standard
Color:
Blue Or Optional
Product Description

Blue Color Intermediate Wire Making Machine Copper Wire Draw Machine

Main Features

¤ With high quality components --- bearing SKF, circuit breaker Schneider, motor Siemens etc.



¤ With automatic single spool take up --- fast coiling, neat & tidy; auto counting & stop.



¤ With variable frequency drive for speed regulation.



¤ The operation of the whole machine adopts PLC.

Technical Parameters



Machine Specs ZDL350A
Max input wire 3.0 or 3.5 mm
Output wire range 1.0 - 2.76 mm
Max dies 9
Max speed 1200 m/min
Main power 55 kw
Take up motor power 11 kw
Capacity of accumulator 3 m
Operation direction Left hand or Right hand
Color selection Blue, or customized as requested
Single spool take up 500 - 630 mm
Noise Less than 80 db
Air pressure 0.6 MPa
Air volume 1.0 m³ / min
Power supply 380V - 480V, 50 / 60 HZ



Download Center


Intermediate RBD Wire Drawing With Single Spool Ta...


Note: Please click above link to download our detailed machine technical specifications.



Manual of Machine Purchase



Packing, Shipping, Quality & Service, FAQ etc.pdf



Our Company



Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.



The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.



Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.



Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.



Antiwear Copper Wire Making Machine , SGS 50/60Hz Wire Drawing Equipment 0



Our Workshop



Antiwear Copper Wire Making Machine , SGS 50/60Hz Wire Drawing Equipment 1Antiwear Copper Wire Making Machine , SGS 50/60Hz Wire Drawing Equipment 2Antiwear Copper Wire Making Machine , SGS 50/60Hz Wire Drawing Equipment 3



FAQ



1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.



2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.

3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.

(2) We are a member of Made in China, who is always responsible for all customers.

(3) Please visit us and check our factory by video, and request necessary documents from us.



4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.



5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.

6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.

8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.

9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.

10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.

11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.



12. Q: Can I use my own logo?
A: No problem, please inform us.
