Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: SGS, CE, UL
Model Number: 20DHAT03
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude Packing or Wooden Case
Delivery Time: 25-45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 150 Set/Month
Input Wire Range: |
0.80 MM - 1.60 MM |
Output Wire Range: |
0.17 MM - 0.70 MM |
Max Speed: |
1600 M/MIN |
Die No.: |
20 Sets |
Control Type: |
PID Automatic Control |
Max Copper Load: |
50 KGS |
Machine Size: |
2670L X 1500W X 1950H MM |
Machine Weight: |
2250 KGS |
Input Wire Range: |
0.80 MM - 1.60 MM |
Output Wire Range: |
0.17 MM - 0.70 MM |
Max Speed: |
1600 M/MIN |
Die No.: |
20 Sets |
Control Type: |
PID Automatic Control |
Max Copper Load: |
50 KGS |
Machine Size: |
2670L X 1500W X 1950H MM |
Machine Weight: |
2250 KGS |

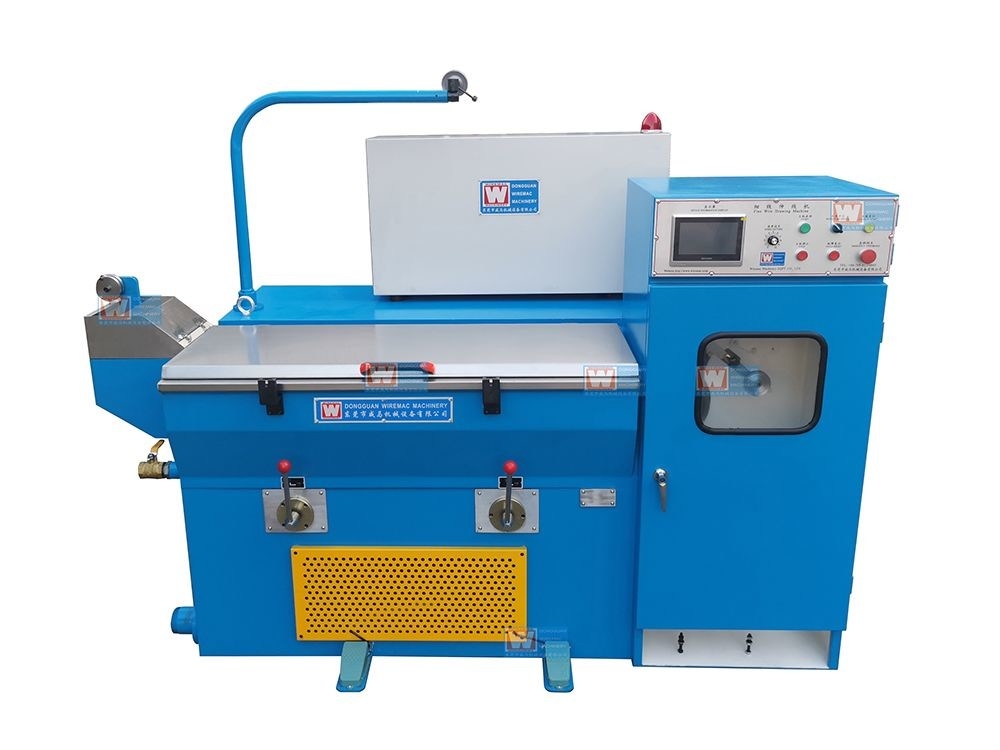

Easy To Operate Medium Fine Wire Drawing Machine With High Output
Introduction
There are many kinds of equipment involved in the wire drawing machine industry. The common wire drawing machines include water tank wire drawing machine, straight wire drawing machine, pulley wire drawing machine, inverted wire drawing machine, etc.
The wire drawing machine is mainly used for the processing of copper wire, stainless steel wire and other metal cable materials. It is a very important processing equipment in the cable manufacturing industry.
With the continuous development of variable frequency speed regulation technology, variable frequency governor has been widely used in wire drawing machine industry, undertaking wire drawing speed regulation, tension coiling, multi-level synchronous control and other links.
The application of frequency converter has greatly improved the automation level and processing capacity of wire drawing machine, effectively reduced the unit energy consumption and maintenance cost of equipment, and has been widely recognized by the industry.
Pay Off: for the whole wire drawing machine link, the control of wire pay off does not have too high precision requirements.
For most wire drawing machines, the pay off operation is realized by driving the setting out frame by frequency converter, but there are also some wire drawing machines with double frequency conversion control, and even directly sent to the wire drawing machine through the wire tension drafting of the wire drawing link to realize free pay off.
Wire drawing: wire drawing is the most important work link of wire drawing machine. Different metal materials, different silk varieties and requirements, wire drawing links are very different.
Take-up: the working speed of the take-up link determines the production efficiency of the whole wire drawing machine, and it is also the most difficult part of the whole system to control. In the winding part, the common control technologies are synchronous control and tension control to realize the winding of metal products
Technical Parameters
| Machine Specs | 20DHAT03 | ||||||
| Inlet wire | 0.80 to 1.60 mm | ||||||
| Outlet wire | 0.17 to 0.70 mm | ||||||
| Machine speed | 1600 m/min, Max | ||||||
| Die quantity | 20 pcs | ||||||
| Take up motor | 4 KW AC motor | ||||||
| Take up spool | 300 mm | ||||||
| Capstan size | 206.85 mm | ||||||
| Drive | Flat belt drive | ||||||
| Mechanical elongation | 17% + 10%. | ||||||
| Brake | Magnetic brake | ||||||
| Power supply | 380V to 480V, 50/60Hz, 3 Phase | ||||||
| Equipment size | L2.67 x W1.5 x H1.95 m | ||||||
| Equipment weight | 2250 kgs | ||||||
Machine Photo
Related Products
Download Center
20 Dies Middle-Fine Wire Drawing Machine.pdf
Note: Please click above link to download our detailed machine technical specifications.
Manual of Machine Purchase
Packing, Shipping, Quality & Service, FAQ etc.pdf
Our Advantages
A. Our technicians / engineers have been working in this industry for more than 20 years. Most of other factories, 5 to 10 years. Our technicians and engineers are our shareholders, who view quality as life.
B. We are a manufacturer for the complete lines, which is easy for us to control the quality.
C. Our company is very very responsible, no customers made complaints because of quality and service. Our competitors have received a lot of lawsuits. If you don't believe it, we can show you. We also welcome anyone to check us any time. Gold will glow if it is.
D. Our company has our own copper wire drawing machine with annealing & tinning factory, we used our drawing machines to produce copper wires. Please contact us freely if you want to visit our copper wire drawing machine factory. We can show you the quality of the products, which is produced by our drawing machines.
E. Our company is located in Dongguan, next to Shenzhen, Guangzhou, Hong Kong. In this area, many enterprises from Japan, Taiwan, Hong Kong came to Dongguan for running factories. The quality concept is much stronger than other provinces. Please ask any Chinese if you don't believe it.
F. The main components are famous brands, SFK bearing, Yaskawa inverter, Habasit belt, Siemens motor, Schneider electrical switches, etc, which ensure the machines running stable.
Our Company
Dongguan Wiremac Machinery Equipment Co., Ltd. Is located in Houjie Town, a famous historic town in China. Our company is a wire and cable equipment manufacturer integrating R&D, processing, assembly, commissioning and after-sales.
The company is committed to copper wire, copper clad steel, copper clad aluminum and other metal wire deep processing and research, with a variety of high quality machines: micro wire drawing machine, fine wire drawing machine, fine wire drawing machine with continuous annealing, medium fine wire drawing machine, intermediate wire drawing machine, intermediate RBD wire drawing machine and copper rod breakdown machine.
Our company provides a complete set of wire processing solutions for customers, but also customize and design non-standard special equipment according to the requirements of customers.
Our company upholds the spirit of “Honesty-based, Quality-based” enterprise, and continue to research and develop innovation and development, with professional skills and standardized pragmatic management, in line with the “High-quality and High-efficiency” business philosophy, from the overall planning, staff training, installation and commissioning, after-sales service, to provide customers with better and more satisfactory products and service.
Our Workshop
FAQ
1. Q: Are you manufacturer or trading company?
A: We are a manufacturer.
2. Q: What info you need before you make the proposal?
A: The input & output wire diameter, spool size, application, 3 phase voltage & frequency, annealing or not, and your other requirement.
3. Q: How can I trust you and make a payment to you?
A: (1) We are an audited supplier by international SGS, with its certificate. They approve that we are an original manufacturer and meet their standard.
(2) We are a member of Made in China, who is always responsible for all customers.
(3) Please visit us and check our factory by video, and request necessary documents from us.
4. Q: I have no experience buying something abroad. What can I do?
A: We will guide and show you how to do the importation, you can also seek help from your local agency.
5. Q: Do you provide installing and debugging overseas?
A: Overseas machine installation and worker training services are available.
6. Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
7. Q: How does your factory do regarding quality control?
A: There is zero tolerance to poor quality. Quality control complies with SGS & ISO 9001. Every machine has to past testing and trial running before it's packed for shipment.
8. Q: How can I trust you that machines pasted testing and trial running before shipping?
A: 1) We record the testing videos for you, and every necessary photos for you.
2) We welcome you to visit us and test machine by yourself in our factory.
9. Q: What about our after-sale service?
A: We provide technical support on line as well as overseas services by skillful technicians.
10. Q: What should I do if I just start a new business?
A: Contact us immediately, we provide free consultant pre-sales service. Also we can help you with material purchase, worker training, etc.
11. Q: Can I visit you factory to check machines on-site? What Should I bring when I visit your factory?
A: We are manufacturer, and welcome customers to visit us. For special product design, you are suggested to bring some samples, you can test it with our machines on-site.
12. Q: Can I use my own logo?
A: No problem, please inform us.
Video
