Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: /
Model Number: LST-40
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD3000-4500 Unit Price
Packaging Details: /
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 40 sets per month
Wire Size.: |
Φ0.1-40mm |
Resolution.: |
0.01mm |
Accuracy.: |
±0.002mm |
Scanning Speed.: |
600n/s |
Power.: |
≤15w |
Electrical Source.: |
AC 100-240V,50HZ |
Temperature.: |
-5°C—+50°C |
Advantage.: |
High Precision,intelligent |
Wire Size.: |
Φ0.1-40mm |
Resolution.: |
0.01mm |
Accuracy.: |
±0.002mm |
Scanning Speed.: |
600n/s |
Power.: |
≤15w |
Electrical Source.: |
AC 100-240V,50HZ |
Temperature.: |
-5°C—+50°C |
Advantage.: |
High Precision,intelligent |
40 wire and cable gauges laser diameter gauge measuring part of cable extrusion line power cable diameter detection
Application
Online detection of extruded wire diameter.
Speficiation

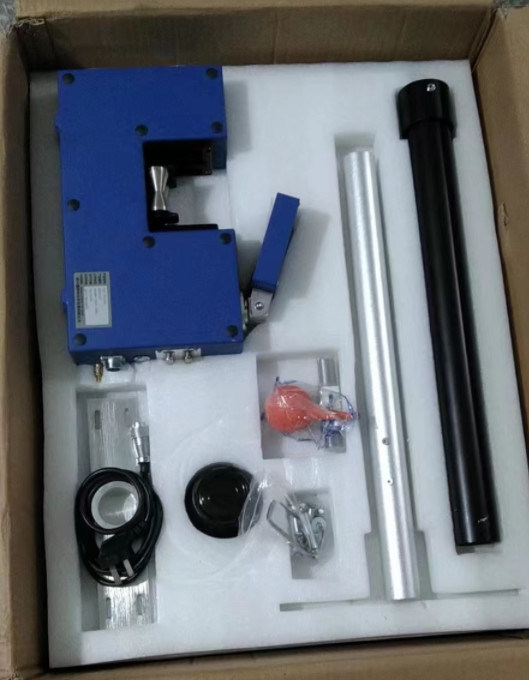

1.Name:LST-40 laser diameter gauge
2,Wire size:Φ0.1-40mm
3,Resolution:Can reach 0.001mm
4,Accuracy:±0.002mm
5,Scanning speed:600n/s
6,Power:≤15w
7,Temperature:from -5°C to +50°C
Feature
1,On-line measurement and control of outer diameter for any wires
2,Non-contact measurement, fast detection speeds, stable performance.
3,Imported optical lens is adopted, the influence of alloy precision diecasting, the quality is more duaranteed.
