DONGGUAN WIREMAC MACHINERY EQPT. CO., LTD. andy@wiremac.com 86-0769-82706004
Product Details
Place of Origin: China
Brand Name: Wiremac
Certification: /
Model Number: LST-25
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD2000-3000 Unit Price
Packaging Details: /
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 40 sets per month
.Wire Size: |
Φ0.1-25mm |
.Resolution: |
0.001mm |
.Accuracy: |
±0.002mm |
.Scanning Speed: |
600n/s |
.Power: |
≤15w |
.Electrical Source: |
7、AC 100-240V，50/60HZ |
.Temperature: |
-5°C—+50°C |
.Wire Size: |
Φ0.1-25mm |
.Resolution: |
0.001mm |
.Accuracy: |
±0.002mm |
.Scanning Speed: |
600n/s |
.Power: |
≤15w |
.Electrical Source: |
7、AC 100-240V，50/60HZ |
.Temperature: |
-5°C—+50°C |

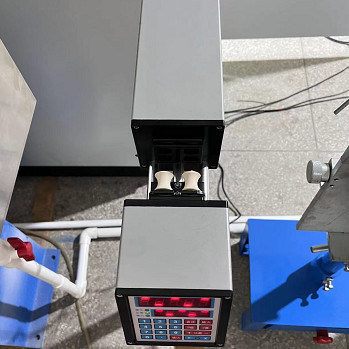

25 Laser diameter gauge laser cable diameter gauge for PVC/PV wire rope diameter measuring diameter gauge fiper
Application
Online detection of extruded wire & cable diameter.
Speficiation
1,Application:online detection of extruded wire & cable diameter.
2,Wire size:Φ0.1-25mm
3,Resolution:0.001mm
4,The Accuracy:±0.002mm
5,Scanning speed:About 600n/s
6,Electrical source:AC 100-240V,50/60HZ
7,Temperature:-5°C ~ +50°C
8,On-line measurement and control for outer diameter for any wires & cables.
9,Imported optical lens is adopted, and the influence of alloy precision diecasting, the quality is more duaranteed.
